Axle Weighbridges

Use the axle weighbridges with the latest ANPR cameras, saves the driver leaving the vehicle for identification.
3

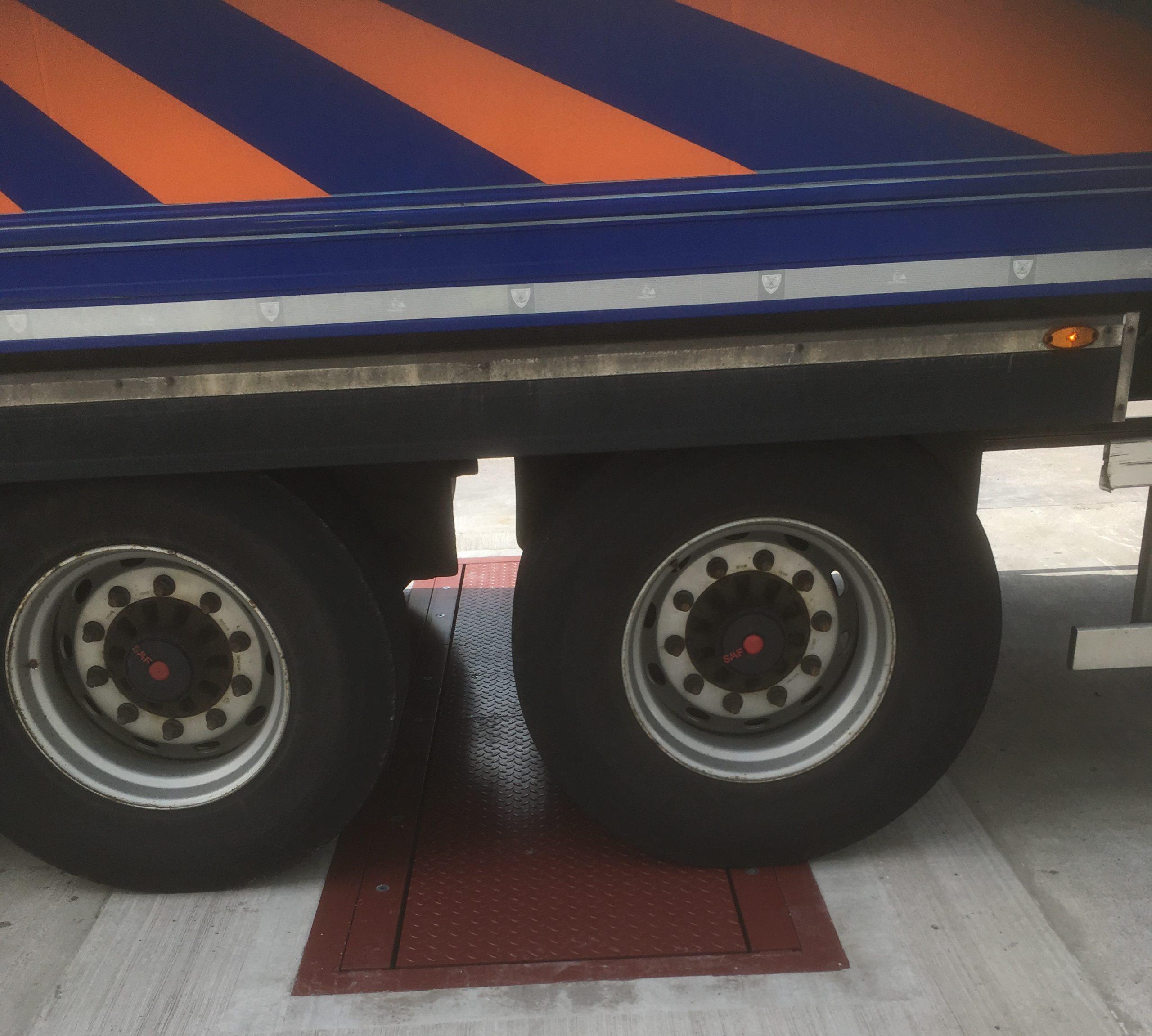

STATIC / IN MOTION AXLE WEIGHER



  • Most advanced axle weighbridge system on the market
  • 25,000kg capacity per axle
  • Each axle independently weighed and displayed on screen, along with the Gross weight
  • Gross, Net and Tare facility
  • Static or Dynamic weighing modes
  • On screen warning for vehicles traveling too fast to prevent incorrect weights
  • Overloaded warning displayed
  • New Indicator available with ID cards for easy recognition
  • Waterproof indicator has LCD touchscreen, 30mm high digits and QWERTY keypad
  • External or Internal printers available
  • Data transfer via USB to Microsoft Excel or direct from indicator to PC
  • Large scale display with 100mm high display available
  • ANPR Camera also available for Vehicle ID
Make an Enquiry

ANPR CAMERA

The latest ANPR camera can be used for vehicle identification, without the driver leaving the vehicle. The ANPR camera will work both day and night and uses the latest in plate reading technology, including full HD sensors for reflective or non reflective number plates.
Make an Enquiry

Low Cost In Motion Indicator

Low cost internal in motion indicator. This indicator offers, vehicle identification,time & date, both axle and gross vehicle weight.

It can also be linked to an external large scale display.

Make an Enquiry

What are axle weighbridges?

Axle weighbridges are specialised weighing systems designed to measure the load on each axle of a vehicle – either individually or while in motion. Phoenix’s static models support up to 25 tonnes per axle and display individual axle weights along with gross, net, and tare values.

How do axle weighbridges work?

These systems utilise high-accuracy load cells built into durable steel or aluminium platforms. For static weighing, the vehicle stops on each pad. For dynamic or “in-motion” weighing, the vehicle drives slowly across the platform (typically at 1–5 mph), while software calculates axle loads, total vehicle weight, axle spacing, and speed. On-screen alerts notify drivers of overloading or excessive speed to ensure reliable readings.

Key benefits of axle weighbridges

  • Compliance and safety: Helps prevent overloaded vehicles, ensuring adherence to road safety regulations.
  • Efficiency: In-motion weighing reduces queuing and minimises downtime for drivers.
  • Cost-effective: More affordable and simpler to install than full-length weighbridges – especially semi-portable models, which require minimal civil works.
  • Data-driven: Built-in indicators and software enable USB or Excel data export, with ANPR camera integration available for automatic vehicle identification.

Applications of axle weighbridges

Ideal for logistics centres, fleet operators, farms, quarries, and roadside enforcement. They support accurate payload management, help reduce road damage, maintain insurance compliance, and avoid costly fines or delays.

Why choose Phoenix?

Phoenix provides UKAS-accredited calibration and servicing, portable and semi-portable options, ANPR-compatible in-motion systems, and remote data access – all backed by dependable technical support across the West Midlands and the UK.
